The RUT906 is specifically designed for industrial Internet of Things (IoT) applications, offering robust support for a range of features including serial interfaces RS232 and RS485, protocols such as MQTT and BACnet, input/output functionalities, Ethernet connectivity, and more. In addition to its extensive capabilities, this cellular router is equipped with advanced features such as GNSS (Global Navigation Satellite System) for precise location tracking and failsafe mechanisms, including Dual SIM support, automatic failover, and backup WAN connectivity, ensuring uninterrupted and reliable operation in critical industrial environments.
Teltonika Networks RMS has various available services that allow for extensive control and advanced analytics for compatible devices. There are 3 types of RMS Services:
- Management: Complete remote control over all connected Teltonika Networks compatible devices even without a public IP.
- Connect: Unified access system allowing to reach and control connected smart devices remotely with RMS.
- VPN: RMS VPN is the safest way to reach multiple endpoints remotely.
Security is the top priority for all Teltonika Networks products and the same applies to RMS. We use multiple measures to ensure a safe connection, including numerous security protocols and data encryption.
- Encrypted Communication: Keep your setup safe with encrypted channels to communicate with Teltonika Networks and third-party devices.
- Proprietary Protocol: Ensure the safety of your data transfer between router and server with the proprietary protocol.
- AWS Cloud Security: RMS is hosted on AWS, chosen for its robust security capabilities and tools.
- Teltonika ID: Use your biometrics for highly secure yet fast and easy authentication.

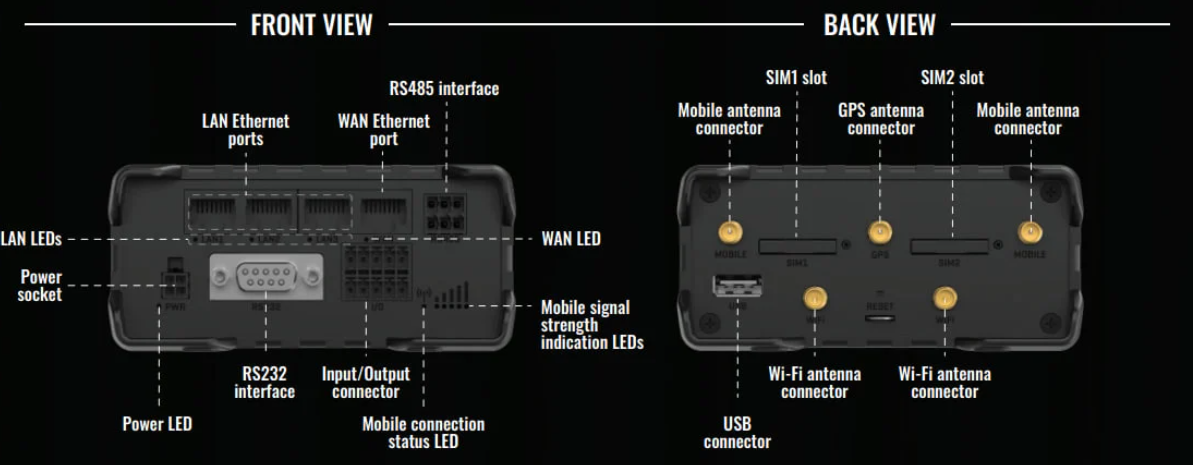

Features
.png)
Packing List
.png)
Hardware:
- Mobile:
- 4G (LTE) – Cat 4 up to 150 Mbps,
- 3G – Up to 42 Mbps,
- 2G – Up to 236.8 kbps
- CPU: Mediatek, 580 MHz, MIPS 24KEc
- Memory: 128 MB, DDR2
- Storage: 16 MB, SPI Flash
- Powering options:
- 4-pin industrial DC power socket,
- 9 - 30 VDC
- SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
- Antenna connectors:
- 2 x SMA for LTE,
- 2 x RP-SMA for Wi-Fi,
- 1 x SMA for GNSS
- Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
- Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
- Inputs/Outputs:
- 2 x Inputs and 2 x Outputs on 10-pin industrial socket,
- 1 x Digital input and 1 x Digital output on 4-pin power connector
- Serial:
- 1 x RS232,
- 1 x RS485
- Other: 1 x USB host
- Status LEDs:
- 1 x bi-color connection status,
- 5 x Mobile connection strength,
- 4 x ETH status,
- 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing, plastic panels
- Dimensions (W x H x D): 109.5 x 50 x 100 mm
- Weight: 295 g
Software:
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features:
- Auto APN,
- Band lock,
- SIM switch,
- Operator black/white list,
- Data/SMS limits
- Network features: Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Wireless Connectivity Features: Fast roaming (802.11r), Relayd
- Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
- GNSS: NMEA forwarding, NTRIP, AVL, Geofencing
Packing List
- 1 x Router RUT906
- 1 x 9W PSU
- 2 x Mobile antennas (magnetic mount, SMA male, 3m cable)
- 2 x Wi-Fi antenna (magnetic mount, RP-SMA male, 1.5m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3m cable)
- 1 x RS485 connector block
- 1 x I/O connector block
- 1 x Ethernet cable (1.5 m)
- 1 x SIM Adapter kit
- 1 x Quick Start Guide
