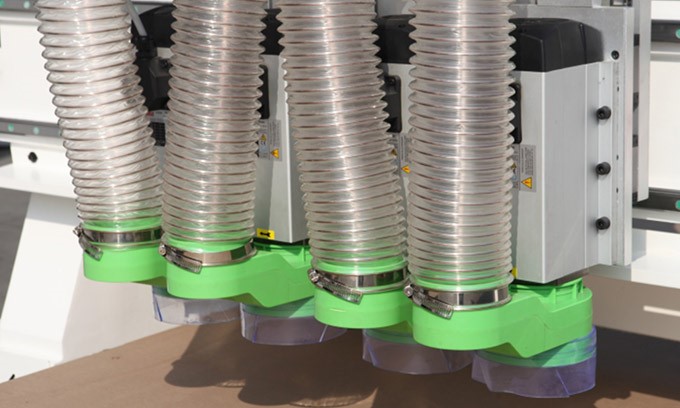

Four spindles can be used to process grooving, milling, cutting, and drilling etc.
.jpg)

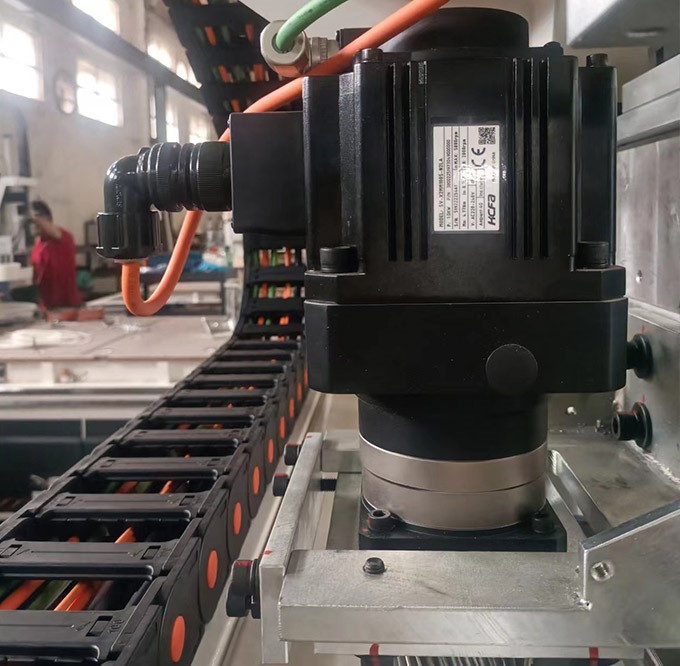

Imported servo motor&driver and reducer
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.
.jpg)

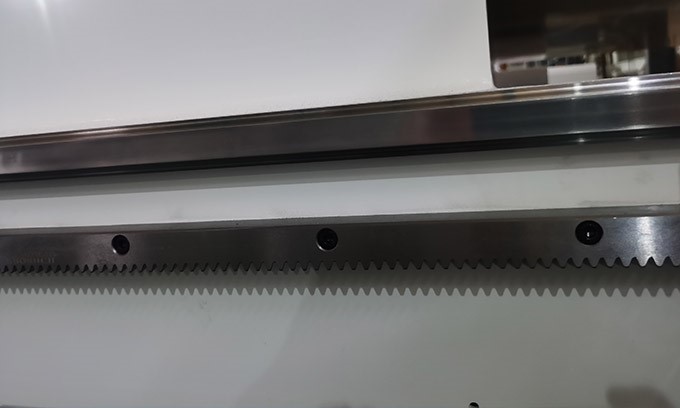

High Precision imported guide rail and rack
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.

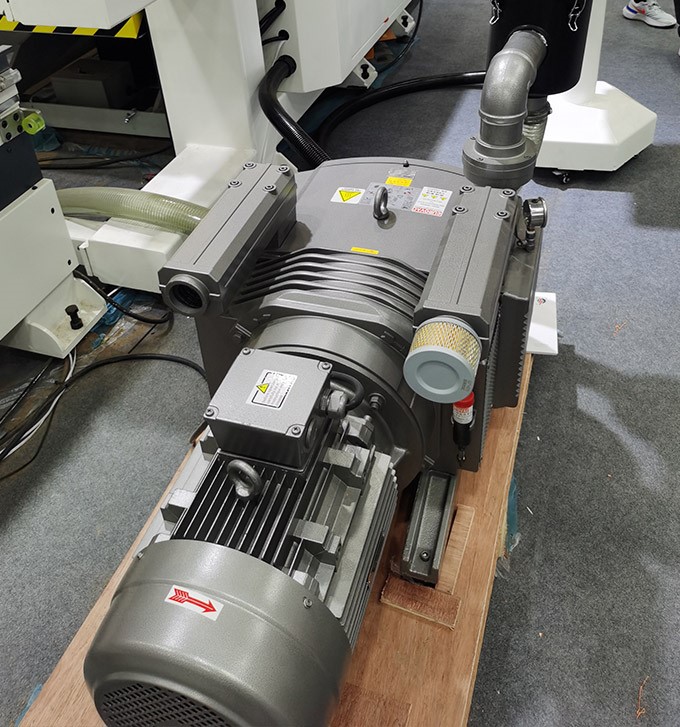

Standard with vacuum pump
vacuum pumps ensure the powerful suction.
Type: DryPower: 7.5kw
Suction flowrate:250m3/h

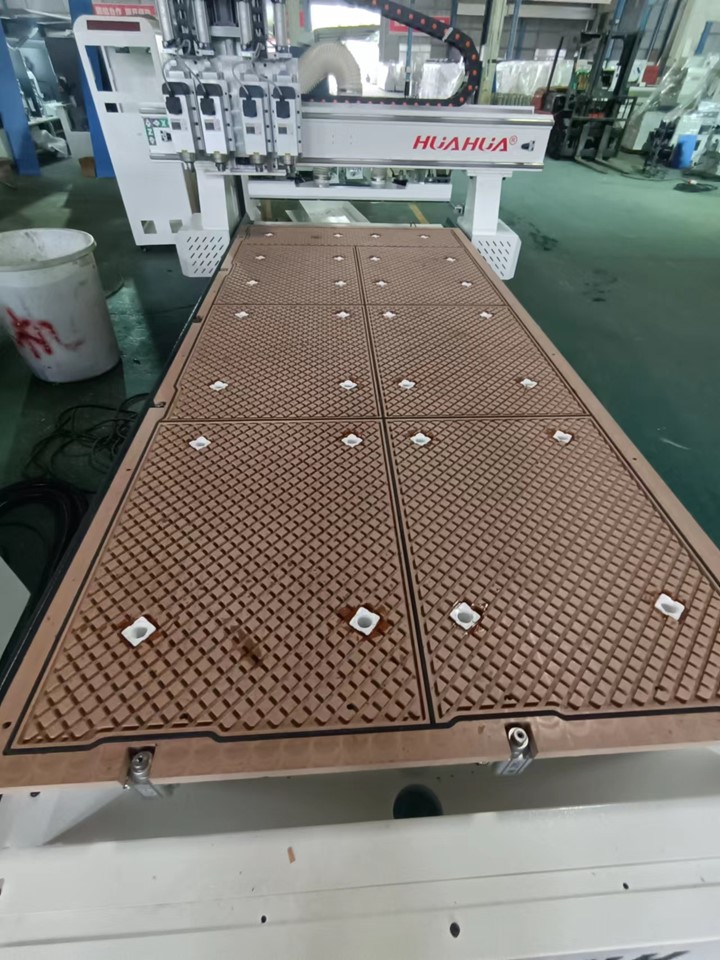

Vacuum worktable
Material: 2.8CM thickness
PVC boardWorktable isdivided into 7 parts, 4 big holes
in each part to ensure the adsorption is equal.
Each area can work independently
.jpg)

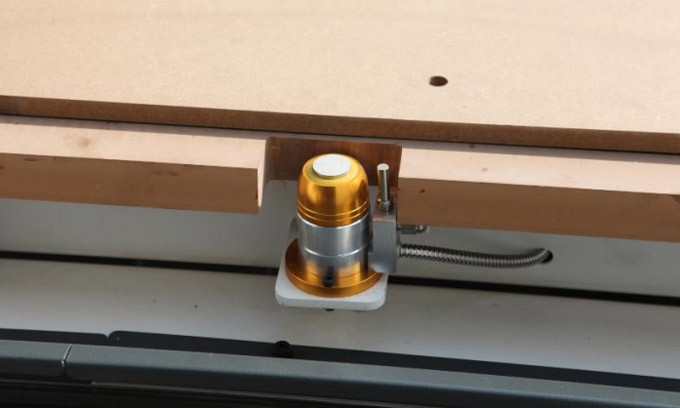

Automatic tool sensor
The sensor will help measure the Z axis height distance
applications
- Panel furniture production
- Cabinet and wardrobe manufacturing
- CNC nesting and cutting for boards
- Wood-based panel processing
A 4-process nesting router is a multi-spindle CNC machine with four separate tools (spindles) for automated panel processing, performing tasks like cutting, drilling, grooving, and engraving in one cycle without manual tool changes, significantly boosting efficiency for making cabinet parts, furniture, and displays. It's designed for high-volume panel processing, combining nesting (efficient material layout) with multiple tool functions for speed and cost savings.
|
Working range |
X-axis: | 1220mm / 1830mm |
| Y-axis: | 2440mm / 2800mm | |
| Z-axis: | 200mm | |
|
Machine Speed |
X-axis max. speed | 80m/min |
| Y-axis max. speed | 80m/min | |
| Z-axis max. speed | 20m/min | |
|
Machine structure |
work table | vacuum worktable |
| X/Y/Z axis | X/Y axis：Oblique Rack Gear | |
| Z axis：Ball Screw | ||
|
Main spindle |
Quantity | 4 |
| Power | 6KW | |
| Rotating speed | 18000 rpm | |
| Drive system | Taiwan Syntec servo motor and driver | |
|
Vacuum pump |
Working principle |
Dry vacuum pump from Taiwan Eurovac |
| Quantity | 1 | |
| Power | 7.5Kw /11Kw | |
| Suction flow rate | 250m³/h / 400m³/h | |
| control system | Syntec control system | |
| Power supply | Voltage: 415V, 3-phase, Frequency: 50 Hz | |
|
Machine can use software |
Cabinet Vision, Alphacam, etc. CAD/CAM software compatible, identify G code, *.NC. |
|
| Packing size | About 3800x2300x2500mm | |
| Net weight | About 1800kg | |
We focus on supplying woodworking machinery to local customers.
Installation, machine setup, operator training, and after-sales technical support are provided by our local service team.
Remote technical assistance is available when required.
FAQ
Q: What is this machine used for?
A: It is used for CNC cutting and nesting in woodworking and panel furniture manufacturing.
Q: Is this machine suitable for furniture factories?
A: Yes. It is suitable for cabinet, wardrobe, and panel furniture production.
Q: Do you provide installation and training?
A: Yes. Installation, machine setup, and operator training are provided by our local technical team.
Q: Do you offer after-sales technical support?
A: Yes. Ongoing after-sales service and technical support are provided.
