- Reliable performance and accuracy
- Simple operation
- Internal timer - a 5 mode timer suitable for simple time based profiling applications
- Universal input - 9 thermocouple types, PT100, DC linear and a downloadable custom curve
- Three internal alarms
- Up to two relay outputs
- One logic input or output
Universal input/two outputs
A universal input enables selection of nine internally stored thermocouple types and the PT100 resistance thermometer. Other input linearizations may be factory downloaded. Linear inputs can be scaled to the desired display range.Two outputs are configurable for heating, cooling or alarms.
Internal alarm setpoints
Three internal alarm setpoints are provided - configurable as high, low or deviation alarms. Alarms can be 'blocked' on start-up to prevent unnecessary operator alerts.Heater failure can be detected using PDSIO when the controller is used with a TE10S Solid State Relay - this negates the need to use extra components such as current transformers.
Operator interface
The operator interface can be customized to present only those parameters that an operator needs to see and adjust, while other parameters are locked away under password protection.Internal timer
A five mode timer is provided for simple, time-based profiling applications.Ideal for:
- Plastics - extrusion
- Chillers
- Sterilizers
- Heat treatment -small ovens
- Heat sealing
- Trace heating
- Universal input selection
- Two configurable outputs
- Three internal alarm setpoints
- Heater failure detection
- Tactile buttons
- Customized operator interface

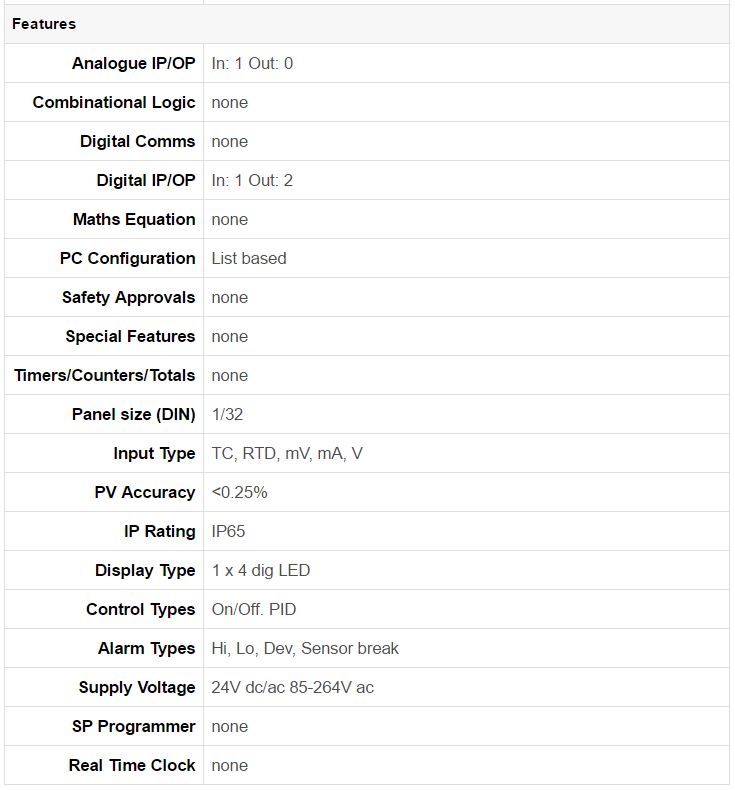

.jpg)
